2019-2023 Ram 1500 Animated DRL Grille Bars - Plug & Play!

Features and Benefits:

• Only OEM-quality connectors & wire are used – don’t settle for anything less!
• Allows a seamless connection to your headlights’ parking light circuit.
• The best way to power 12v grille lights.
• No cutting or splicing required – just plug the new adapter into your existing factory connector.
• Assembled in USA!

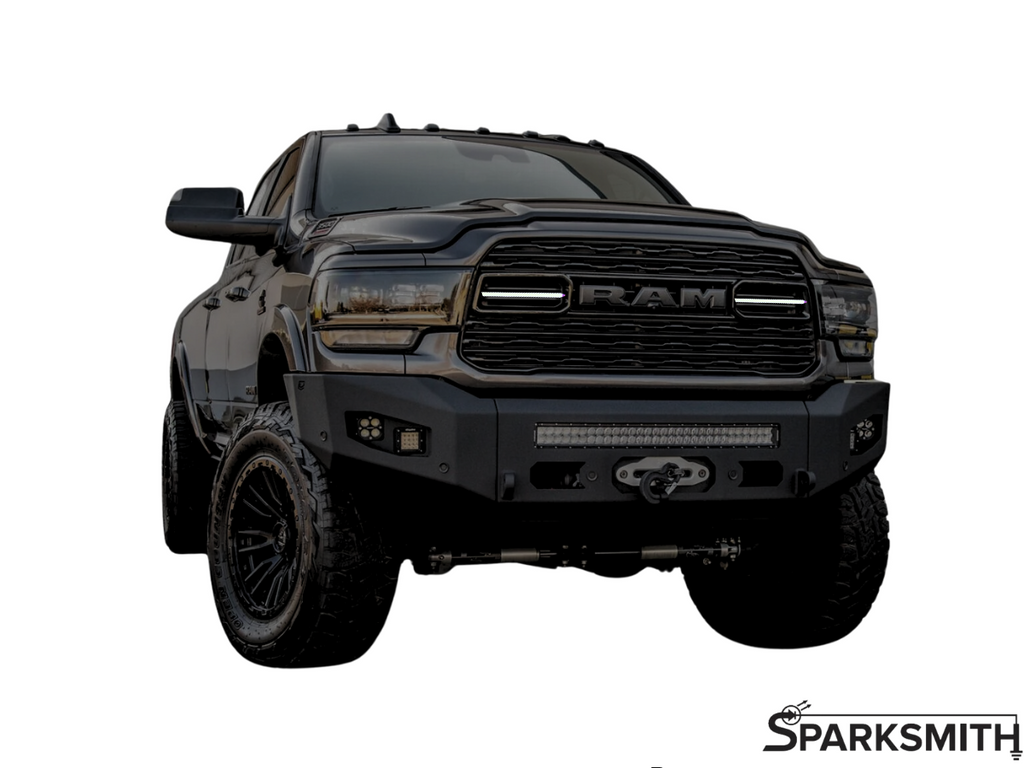

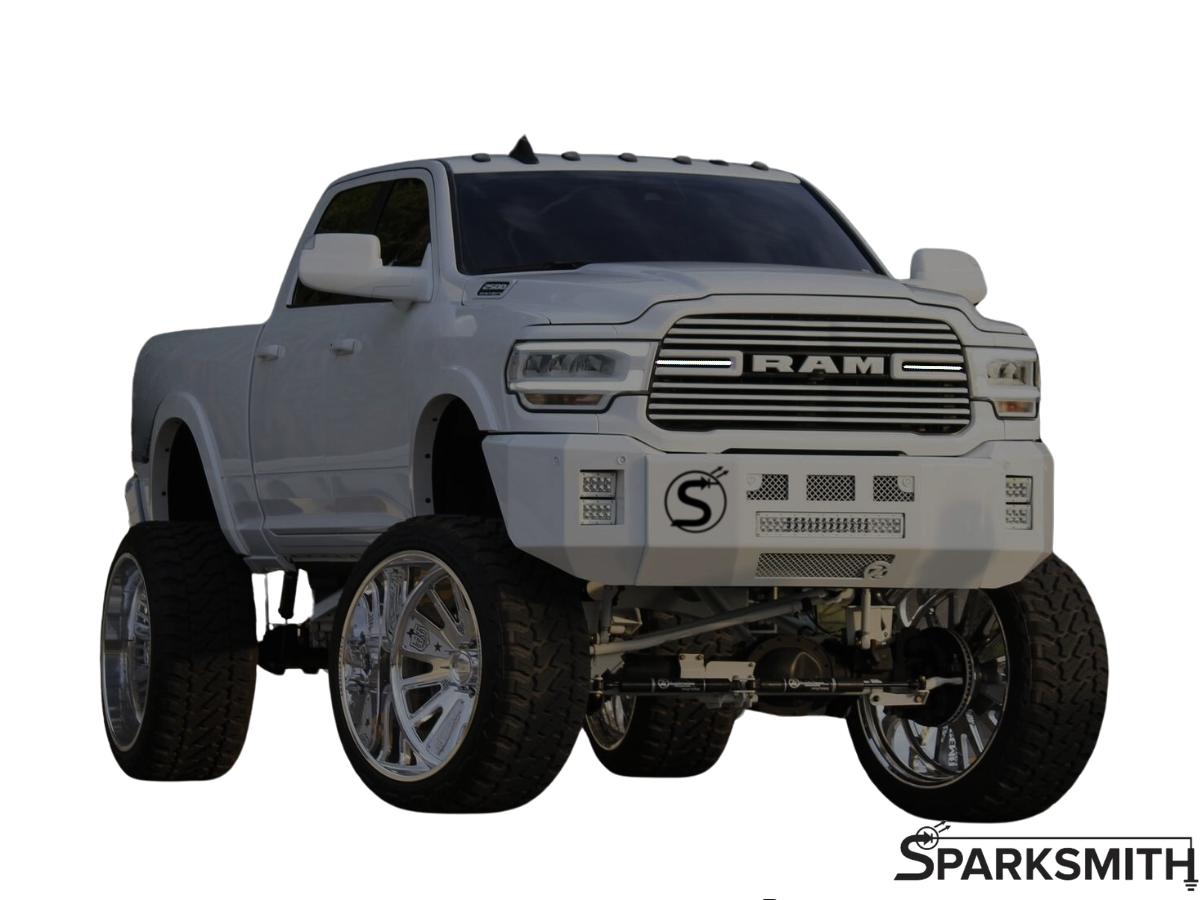

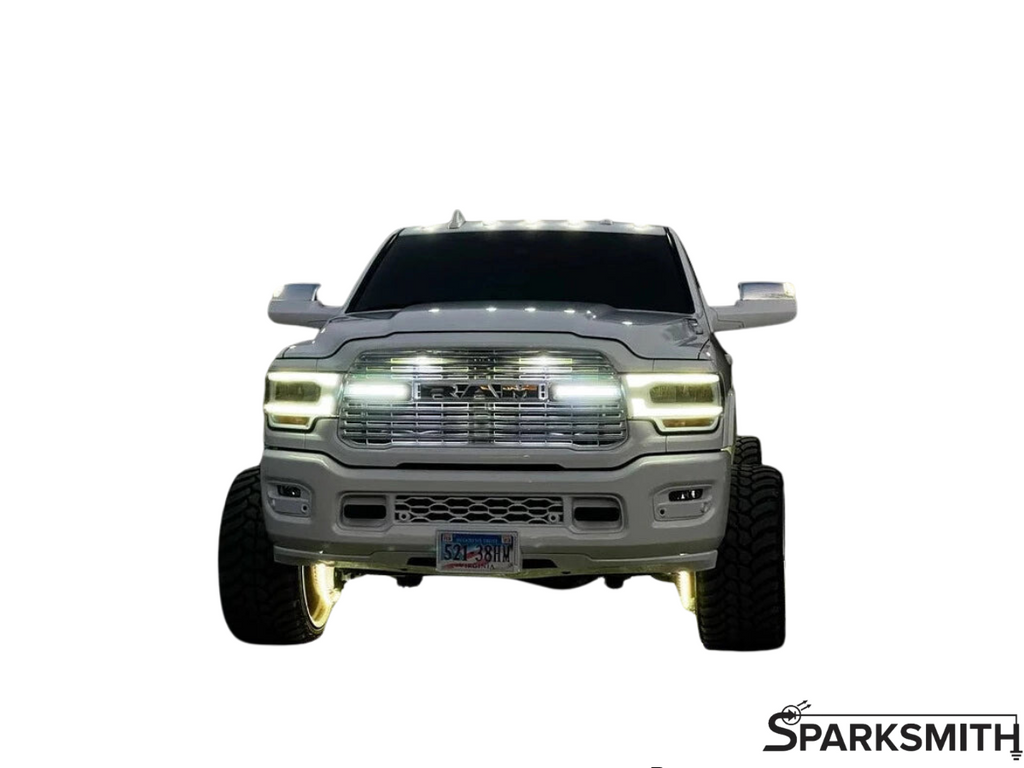

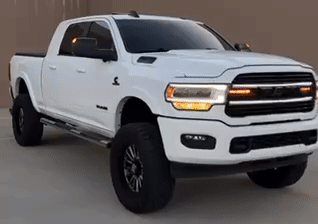

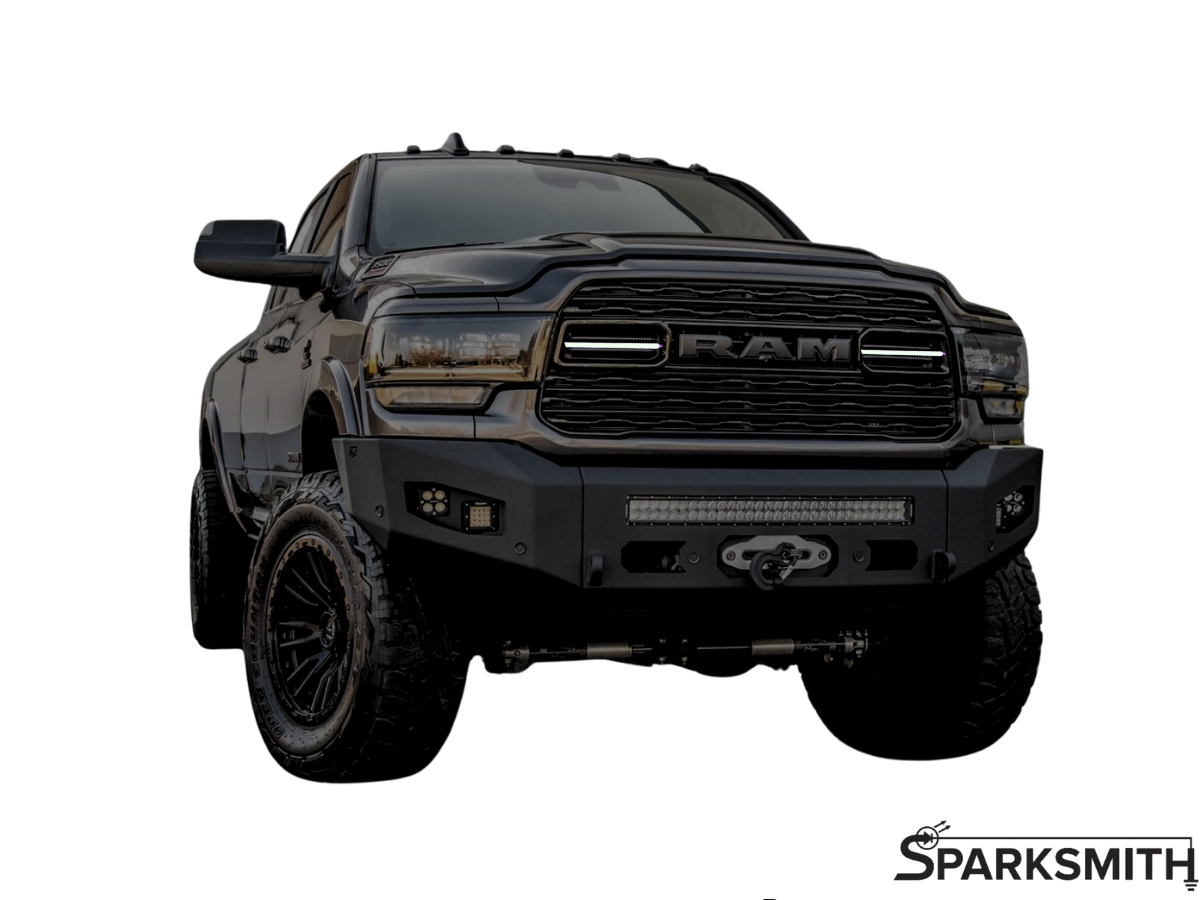

A sharp and eye-catching mod for your 2019-2023 Ram 1500 - Animated DRL GrilleBars! Your truck already has the wiring for it, why not use it in a much more effective and dynamic way? Choose from switchback, white only, or amber only.

This kit will include a pair of our all new 2.0 animated startup GrilleBars.   Our 9" Universal GrilleBars are used to give your Ram truck a seriously eye-catching new look.

Wiring is a Sparksmith exclusive plug & play harness that will work with any 2019-2023 Ram 1500. The optional built-in resistors on the harness ensure that you won't have any issues with hyperflash when running our LED bulbs up front.

That's it! No cutting, no soldering, no crimping, no modification to your stock wiring, whatsoever. What's even better? We have (optional) integrated HD Load resistors. This will allow you to run LED turn signal bulbs without the effects of hyperflash. It really couldn't get any better.

Still have questions? Give us a call, text, email, IG message, or come by and see us!



WHAT'S INCLUDED

• LED STRIPS: 2x 9" Universal Animated Startup GrilleBars

• WIRING: Complete Plug & Play harness
• LOAD RESISTORS (Optional): 2x Sparksmith HD Load resistors
• WARRANTY: 3 Years



COMPATIBILITY

• RAM Trucks: 2019-2023 2500, 2019-2023 3500
• HALOGEN HEADLIGHTS

  • 2019-2023 Ram 1500 Tradesman
  • 2019-2023 Ram 1500 Big Horn (With Halogen Headlights)
  • 2019-2023 Ram 1500 Laramie (With Halogen Headlights)
• LED  HEADLIGHTS
  • 2019-2023 Ram 1500 Big Horn (With LED Headlights)
  • 2019-2023 Ram 1500 Laramie (With LED Headlights)
  • 2019-2023 Ram 1500 Rebel
  • 2019-2023 Ram 1500 Limited Longhorn
  • 2019-2023 Ram 1500 Limited
  • 2021-2023 Ram 1500 TRX
• CONNECTIONS: Fits OEM halogen and both LED style headlight plugs



TECH SPECS

• PRIMARY FUNCTION: White or Amber
• SECONDARY: Sequential Turn Signal
• LIGHT SOURCE: Proprietary 2835 SMD LED
• EXPECTED LIFESPAN: 50,000 hours
• WIDTH: 3/4" (19mm)
• THICKNESS: 1/2" (12mm)
• DRIVER: Integrated
• COLOR WHEN OFF: Neutral White
